HYDRO-PNEUMATIC TOOLS FOR RIVETS & LOCKBOLTS

Blind rivets and blind rivet nuts require the use of appropriate tools.
DEGOMETAL offers a wide range of professional riveting tools.
The DEGOMETAL tool range offers the following advantages:
  • Ease of use
  • Ergonomics
  • Reliability: our tools are meant for intensive and continuous use
  • All-inclusive: all tools are delivered with the material necessary for diameter modification.
Our tools are available in manual, pneumatic (with automatic change of rivet) or battery-powered version. Furthermore, DEGOMETAL has an efficient After-Sales Service Department (advice and repair) featuring continued supply of spare parts for all of our tools (old and new).

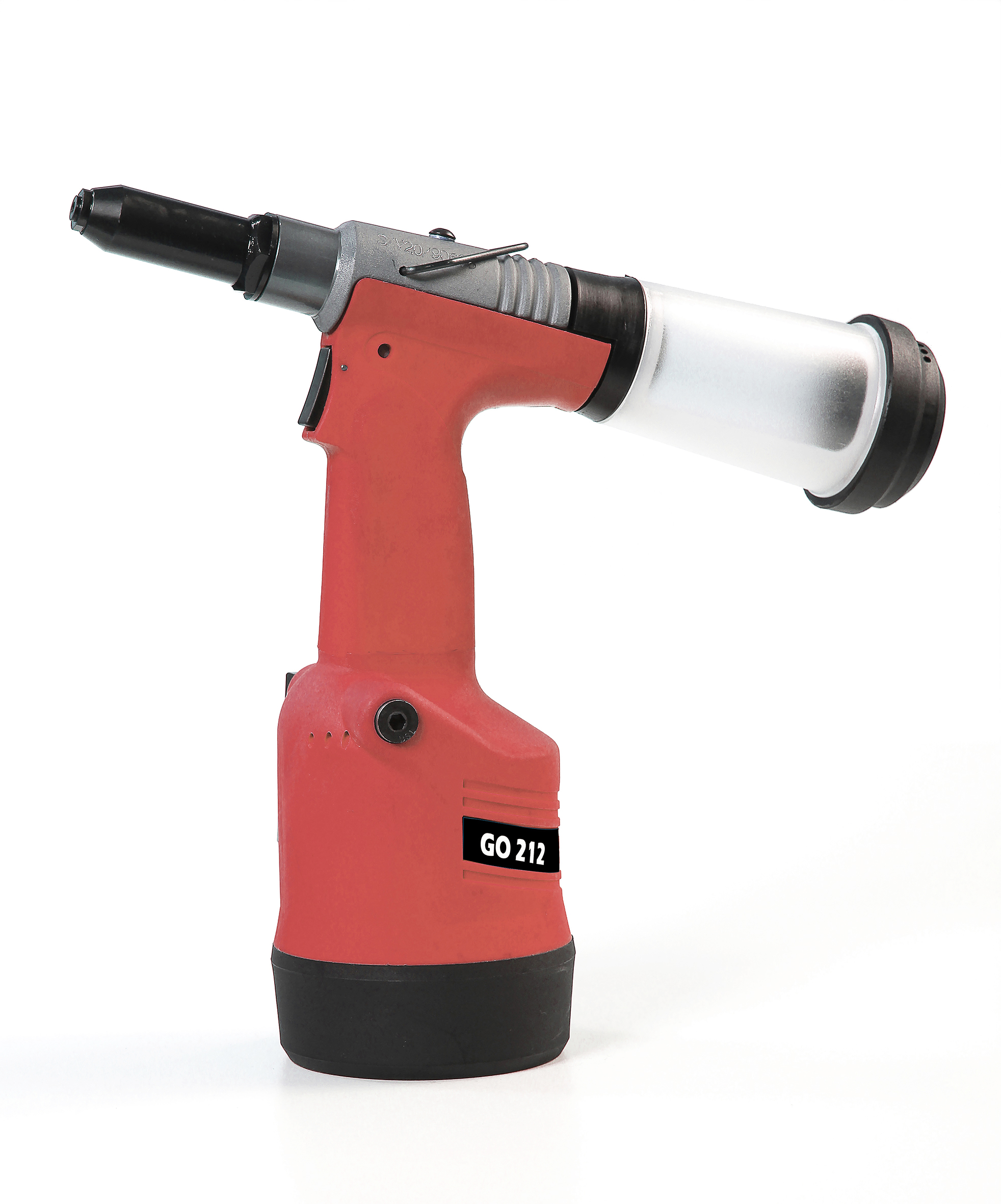

GO 212

THE INDUSTRIAL LIGHT HYDRO-PNEUMATIC TOOL


  • Light, sturdy and reliable
  •  Plastic with fiber-glass - high technology
  • Stroke: 17 mm
  • Air consumption per cycle: 2,1 L without vacuum system
  • Pulling power: 930 kg
  • Operating pressure: 6 bars maxi

Download pdf
Manuel d'utilisation
Ø Capacity Weight Article code
mm kg
Rivets Standards : 3,2 - 4,8 Alu, Acier, Inox 1,570100 002 121

GO 182

MEDIUM DUTY INDUSTRIAL RIVETER



  • Light, sturdy and reliable
  •  Plastic with fiber-glass - high technology
  • Stroke: 28 mm
  • Air consumption per cycle: 4,3 L
  • Pulling power: 1500 kg
  • Operating pressure: 6 bars maxi



Click here to know what a GOLIGHT Type-2 rivet is

Download pdf
Manuel d'utilisation
Ø Capacity Weight Article code
mm kg
Rivets Standards : 4,0 - 6,4 Alu, Acier, Inox1,95100 001 821
Rivets de Structure Type "Highbolt" : 4,8 - 6,4 Alu, Acier, Inox
Rivets étoilés avec rondelle "Golight Type 2" : 5,2 & 7,7 Alu

GO 180/C

MEDIUM DUTY INDUSTRIAL RIVETER


- PREMIUM Range -

Suitable for most of our standard rivets references.

  • Stroke: 20,5 mm
  • Air consumption per cycle: 5,1 NL without vacuum system
  • Pulling power: 1 050 kg
  • Operating pressure: 6 to 7 bars

Download pdf
Manuel d'utilisation
Ø Capacity Weight Article code
mm kg
Rivets Standards : 2,4 - 5,0 Alu, Acier, Inox / jusqu'à 6,0 en Alu1,7100 001 801C
Rivets Structure Type "Highbolt" : 4,8 Alu, Acier, Inox (nez en option)

Additional Nose for setting Structural Rivets "HIGHBOLT"

For GO 180/C

Download pdf

Ø Capacity Weight Article code
mm kg
Pour Rivets de Structure HIGHBOLT Ø 4,8-Z01710094

GO 172

HEAVY DUTY INDUSTRIAL RIVETER




  • Light, sturdy and reliable
  •  Plastic with fiber-glass - high technology
  • Stroke: 17 mm
  • Air consumption per cycle: 4,3 L
  • Pulling power: 1800 kg
  • Operating pressure: 6 bars maxi


The little + : Riveting also HIGHLOCK Structural Rivet & GOMUST Rivet

Click here to know what a Structural Rivet Highbolt is

Click here to know what a Rivet Gomust is

Download pdf
Manuel d'utilisation
Ø Capacity Weight Article code
mm kg
Rivets Standards : 4,8 - 6,4 Alu, Acier, Inox1,65100 001 721
Rivets de Structure Type "Highbolt" & "Highlock" : 4,8 - 6,4 Alu, Acier, Inox
Rivets étoilés avec Rondelle "Golight Type 2" : 5,2 & 7,7 Alu
Rivets Haute Résitance "Gomust & Gomust HR" : 4,8 & 6.4 Acier, Inox

EXTENDED NOSES FOR HYDRO-PNEUMATIC TOOLS FOR RIVETS
L=18 mm & L=12 mm

For GO 171, GO 180, GO 180/B, GO 180/C, GO 252 & GO 265










Download pdf

Ø Capacity Weight Article code
mm kg
Détails dans la fiche Produit PdfDetails in the Pdf product sheet

GO 564



  Recommended tool for setting Lockbolts.

  • Industrial Riveter.
  • Sturdy and Reliable.
  • Stroke : 17 mm
  • Air consumption per cycle : 9 L
  • Operating pressure : 6 to 8 bars
  • Pulling power : 2300 Kg

Optional Nose Accessories :
For GOLOCK (Lockbolts) Ø 6,4 mm => Ref Z05640077

Tool also compatible with Avtainer® Ø 6.4 mm (optional nose)

Download pdf
Vidéo entretien & utilisation
Ø Capacity Weight Article code
mm kg
Boulons à sertir (Lockbolts) : Ø 6,4 Acier, Inox (Nez en option)2,610100 005 641
Avtainer® Ø 6,4 Acier (Nez en option)

Accessories for GO 564 Tool

Download pdf

Ø Capacity Weight Article code
mm kg
Nez pour / Nose for : Boulons GOLOCK Ø 6,4-Z05640077
Kit (Nez + bague) pour AVTAINER® Ø 6,4-Z05640079

GO 230

THE STANDING HYDRO-PNEUMATIC TOOL WITH RIVET'S HOLDING


Tool suitable for vertical riveting or production lines.

  • Stroke : 15,5 mm
  • Air consumption per cycle : 1,4 Nl
  • Pulling power max : 8709 N (6 bars)
  • Min int Diameter of the compressed air feeding hose : 8 mm
Optional : Mandrel Collector Kit.

Download pdf
Manuel d'utilisation
Ø Capacity Weight Article code
mm kg
2,4 - 4,8 Alu, Acier, Inox1,660100 002 301

GO 430

HYDRO PNEUMATIC SPEED RIVETER

Short cycle time ( < 2 seconds)
Up to 1500 fasteners per hour.

  • Ergonomic handling for fatigue-free operation.
  • Long reach barrel for use in many difficult access applications.
  • Compact, Light and Ergonomic.

  • Stroke: 30 mm
  • Air supply pressure Min-Max : 5-7 bars
  • Supply free Air volume required : 2,6 litres
  • Pull force : 389 kg
  • Vibration : less than 2,7 m/s2
  • Noise level less than 70 db (a)

Download pdf
Vidéo entretien & utilisation
Ø Capacity Weight Article code
mm kg
3,2-4,8 Alu, Acier, Inox 2,4 en Alu seulement1,080100004301
