Blind rivets

The "blind" rivet, more commonly known as “break stem rivet" is a high performance fastening system that cannot be taken apart. It allows to assemble two or more mechanical systems.

There are many types of blind rivets: standard rivets defined by the standard NF EN ISO 14588 as well as customised rivets for very specific functioning, sizes and mechanical strengths.

corps-rivet

The rivet body

The body of the rivet is the deformed element. It ensures the fixing of mechanical elements between them
4-mors

The rivet mandrel

The mandrel of the rivet allows the deformation of the body during the setting process to ensure a perfect fixing of the different elements to assemble.

The print of the mandrel is stamped with a tool consisting of four tungsten carbide jaws, designed, developed and manufactured within the research department of 4F company.

degometal-rivets-aveugles-4-mors

The 4-jaw technology

  • Ensure a constant tensile strength of the mandrel.
  • Ensure a clear and precise mandrel breaking point.
  • Obtain the special dimensional and mechanical for developing specific products.
rivet-aveugle-pose

Installation description

Blind rivet installation requires a special tool.

This tool can be manual, hydro-pneumatic or electrical depending on the type of rivet and application

rivets-aveugles2

How to choose the right length for a rivet*

Add at least 1 time the diameter of the body to the thickness of the parts you want to crimp.

EXAMPLE :

You need a rivet with a 4,8 mm diameter to crimp metal sheets whose total thickness is a 6 mm.

The minimum "L" length under the head of the rivet will be 6 + (1 x 4,8) = 10,80 mm. – In theory, choose a 4,8 x 11 or 4,8 x 12 rivet.

* This is only valid for the standard rivets.

TRS

Domed Head

TF

Countersunk Head

TL

Large Head

TEL

Extra Large Head

TR

Reduced Head

caracteristiques-dimensionnelles

Dimensional Characteristics

rivets-aveugles03

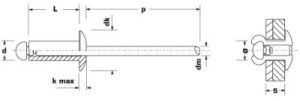

Ø d (mm) Diameter of the body
Ø dk (mm) Diameter of the body's head
k (mm) Thickness of the body's head
L (mm) Lenght of the body
p (mm) Protrusion of the mandrel
Ø d (mm) Diameter of the mandel
alt Drilling diameter (mm) ø
alt Grip range (mm) S
alt Tensile strengh (N)
alt Sheer strength (N)


test-cisaillement test-traction

Mechanical characteristics

The two mechanical properties that are essential for a blind rivet are tensile and shear strength.
Tensile strength is the maximum effort that a rivet can stand in a longitudinal direction until it breaks (value expressed in Newton).
Shear strength is the maximum effort a rivet can stand in a radial direction until it breaks (value expressed in Newton).
1 kg = 10 N
courbe-serrage

Clamping curve

Clamping strength corresponds to the fastening effort between mechanical elements. This characteristic is not standard- ized and depends on various parameters intrinsic to the rivet, ensuring its optimum functioning.

General tolerances

These dimensional tolerances are valid for our NF-E 25-701, NF-E 25-702 compliant rivets. We can also supply DIN 7337 compliant rivets.
Ø NOMINAL 2,4 mm 3,0 mm 3,2 mm 4,0 mm 4,8 mm 5,0 mm 6,0 mm 6,4 mm
d   2,30 - 2,48 2,90 - 3,08 3,10 - 3,28 3,85 - 4,08 4,65 - 4,88 4,85 - 5,08 5,85 - 6,08 6,25 - 6,48
dk TRS 4,2 - 5,0 5,4 - 6,3 5,8 - 6,7 6,9 - 8,4 8,3 - 10,1 8,7 - 10,5 10,8 - 12,6 11,6 - 13,4
TL     7,0 - 8,0 9,0 - 10,0 13,0 - 15,0
TEL     9,0 - 10,0 11,0 - 13,0 15,0 - 17,0
TF 4,2 - 5,0 5,4 - 6,3 5,8 - 6,7 6,9 - 8,4 8,3 - 10,1 8,7 - 10,5 10,8 - 12,6 11,6 - 13,4
TR       6,0 - 7,0 7,5 - 8,5
k max TRS 1,0 1,3 1,3 1,7 2,0 2,1 2,5 2,7
TL
TEL     1,3 1,7 2,0
TF
TR
p min   25 25 25 27 27 27 27 27

Cold forming

Cold forming is a shaping process through which materials are deformed without pre-heating. The machine crops a blank from a wire, then deforms it successively until it reaches its final shape; these extremely fast deformations (just a few hundredths of a second) occur in general either by pressing between a punch and a die, or by creeping around an extrusion punch along the inside of a die. In this way, solid, semi-tubular, tubular or specifically shaped parts can be formed.

Cold forming provides finished or almost finished parts that present excellent mechanical properties. Grain flow orientation is created by the sudden deformation of the material. This process provides very high production rates (up to 500 parts per minute) with minimum waste.

Today, thanks to greatly improving techniques combined with finite element simulation, increasingly complex mechanical parts can be created via cold forming

frappe-a-froid





traitements-surfaces

Surface treatment
Electrolytic Zinc and Black Iron Zinc Plating

Surface treatment WITHOUT CHROMIUM VI is applied to the body of steel and CuNi alloy rivets as well as steel mandrels. The thickness of the coating varies and depends on the desired resistance to corrosion. Standard thickness is 3 to 5 microns, but greater thickness can be requested.

Zinc Nickel Plating
Surface treatment WITHOUT CHROMIUM VI is applied to copper and CuNi alloy rivet bodies. It is used when a rivet must have a very high resistance to corrosion

Anodization
This treatment corresponds to a coloured protective coating on aluminium bodies to protect them significantly from air exposure.

Lacquering
The colouring can be done on any type of body. The choice of colours is almost unlimited: classic colours, all types of special and RAL colours on request.



Electrolytical reaction

When the 2 materials are in contact, corrosion speed may change as indicated below:


* No risk of accelerated corrosion
** Small risk of accelerating the corrosion
*** Most probable accelerated corrosion
**** Dramatically accelerated corrosion



  NICKEL-
CUIVRE
CUIVRE LAITON CUPRO
NICKEL-
ZINC
INOX
(A4/A2)
DURALUMIN ACIER ALU DURALINOX ZINC
NICKEL-CUIVRE - * * ** ** ** ** *** *** ****
CUIVRE * - * * ** ** ** ** ** ***
LAITON * * - * * * ** ** ** ***
CUPRONICKEL-ZINC ** * * - * * * * * **
INOX (A4/A2) ** ** * * - * * * * **
DURALUMIN ** ** * * * - * * * **
ACIER ** ** ** * * * - * * **
ALUMINIUM *** ** ** * * * * * * **
DURALINOX *** ** ** * * * * - - **
ZINC **** *** *** ** ** ** ** ** ** -
