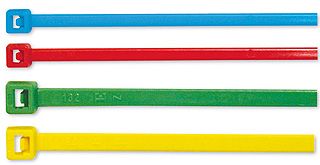

THE CABLE TIE GOTIE

DEGOMETAL offers Cable ties but also accessories:

  • cable tie accessories
  • cable tie tools
colliers-installation-manuelle

Installation description


  1. Manual installation
    • Insert the end of the tie into the adequate head part
    • Tighten the tie manually
    • Cut the remaining part of the tie, leaving out a few safety millimeters
  Advantages of this product

  • Maximum tensile strength
  • Quality
  • Width and wide range of models
  • (Lengh : de 75 à 280 mm)
  • (width : de 2,2 à 12,5 mm)
  • Fast installation
  • Excellent UV resistance (for black cable ties)
2. Installation via specific cabling tool
  • Insert the end of the collar into the adequate head part and set the first segment
  • Use specific tools to tighten the tie around the cables
  • Tighten the tie
  • Cut the remaining part of the tie, leaving out a few safety millimeters
colliers-installation-outil-01

Use tool to tighten

colliers-installation-outil-02

Tighten the tie

colliers-installation-outil-03

Cut the remaining part

MECHANICAL CHARACTERISTICS

Tensile strength

Tensile strength varies according to the width of the tie.

UV resistance

All polymers, including polyamide, are sensitive to ultraviolets (UV)

Natural cable ties offer a low resistance to UV rays and are not recommended for exterior applications.

Black cable-ties are loaded with carbon powder to increase UV resistance. They are therefore recommended for exterior applications.




Heat resistance

All polymers, including polyamide, are very sensitive to extreme temperatures. Exposure to temperatures that are too high or too low can cause a decrease or loss of mechanical strength.

Application fields et examples

  • Electrical installations
  • Industrial cables
  • Switchgear cubicles
  • Cables for Automobile and Naval industries
  • When high resistance is needed
colliers-accessoires
