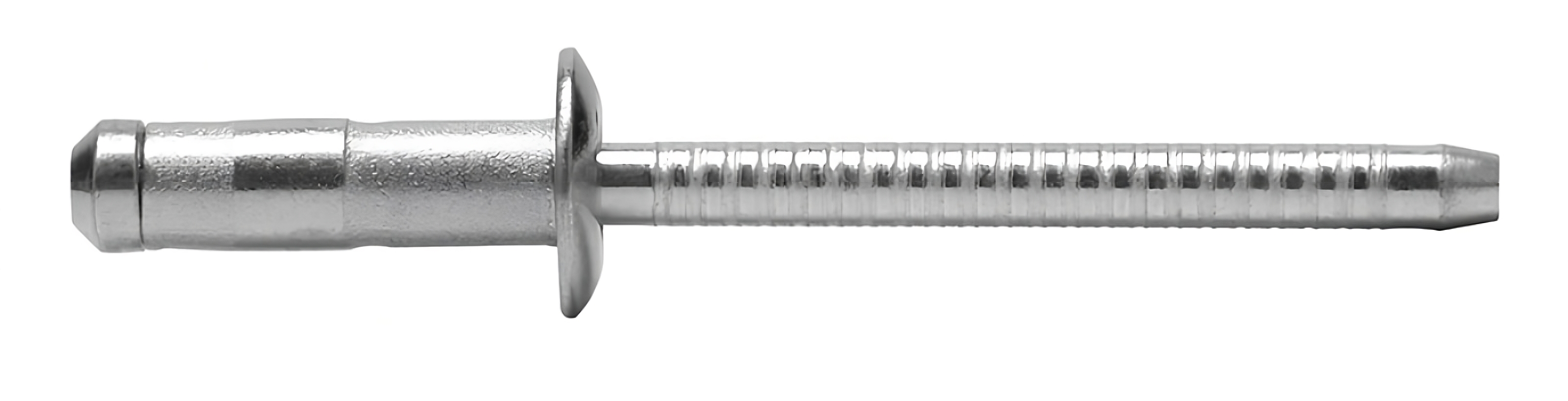

GOMUST
Ø | l | dk | Plage de sertissage | Diamètre de perçage | Résistance à la traction | Résistance au cisaillement | qtte boite carton | Cardboard box | qtte boite plast | Plastic box | qtte blister 1 2 | Blister |
---|---|---|---|---|---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | N | N | qté | ref | qté | ref | qté | ref |
3,2 | 7 | 6,0 | 1,0 - 3,0 | 3,4 | 1300 | 1200 | 500 | 166 132 071 | - | - | - | - |
3,2 | 9 | 6,0 | 3,0 - 5,0 | 3,4 | 1300 | 1200 | 500 | 166 132 091 | - | - | - | - |
3,2 | 11 | 6,0 | 5,0 - 7,0 | 3,4 | 1300 | 1200 | 500 | 166 132 111 | - | - | - | - |
4,0 | 8 | 8,0 | 1,0 - 3,0 | 4,2 | 2800 | 2400 | 500 | 166 140 081 | - | - | - | - |
4,0 | 10 | 8,0 | 3,0 - 5,0 | 4,2 | 2800 | 2400 | 500 | 166 140 101 | - | - | - | - |
4,0 | 12 | 8,0 | 5,0 - 7,0 | 4,2 | 2800 | 2400 | 500 | 166 140 121 | - | - | - | - |
4,8 | 9,5 | 9,5 | 1,5 - 3,5 | 5,0 | 3800 | 3600 | 500 | 166 148 0951 | - | - | - | - |
4,8 | 12 | 9,5 | 3,5 - 6,0 | 5,0 | 3800 | 3600 | 500 | 166 148 121 | - | - | - | - |
4,8 | 14 | 9,5 | 6,0 - 8,5 | 5,0 | 3800 | 3600 | 500 | 166 148 141 | - | - | - | - |
4.8 | 16 | 9,5 | 7,5 - 10,5 | 5,0 | 2900 | 5000 | 500 | 166 148 161 |
DEGOMETAL is able to consider any request for the manufacture of fastening products tailor-made.
The mechanical characteristics of our rivets can be adjusted according to your needs.
DEGOMETAL delivers perfectly adapted, high-quality solutions either directly off-plan or through an analysis of our customer's technical specifications.
